Supplied with power cable and mounting brackets.
Buy ( Coming soon )
It is an excellent choice for small clubs and tours that operate on a tight budget.

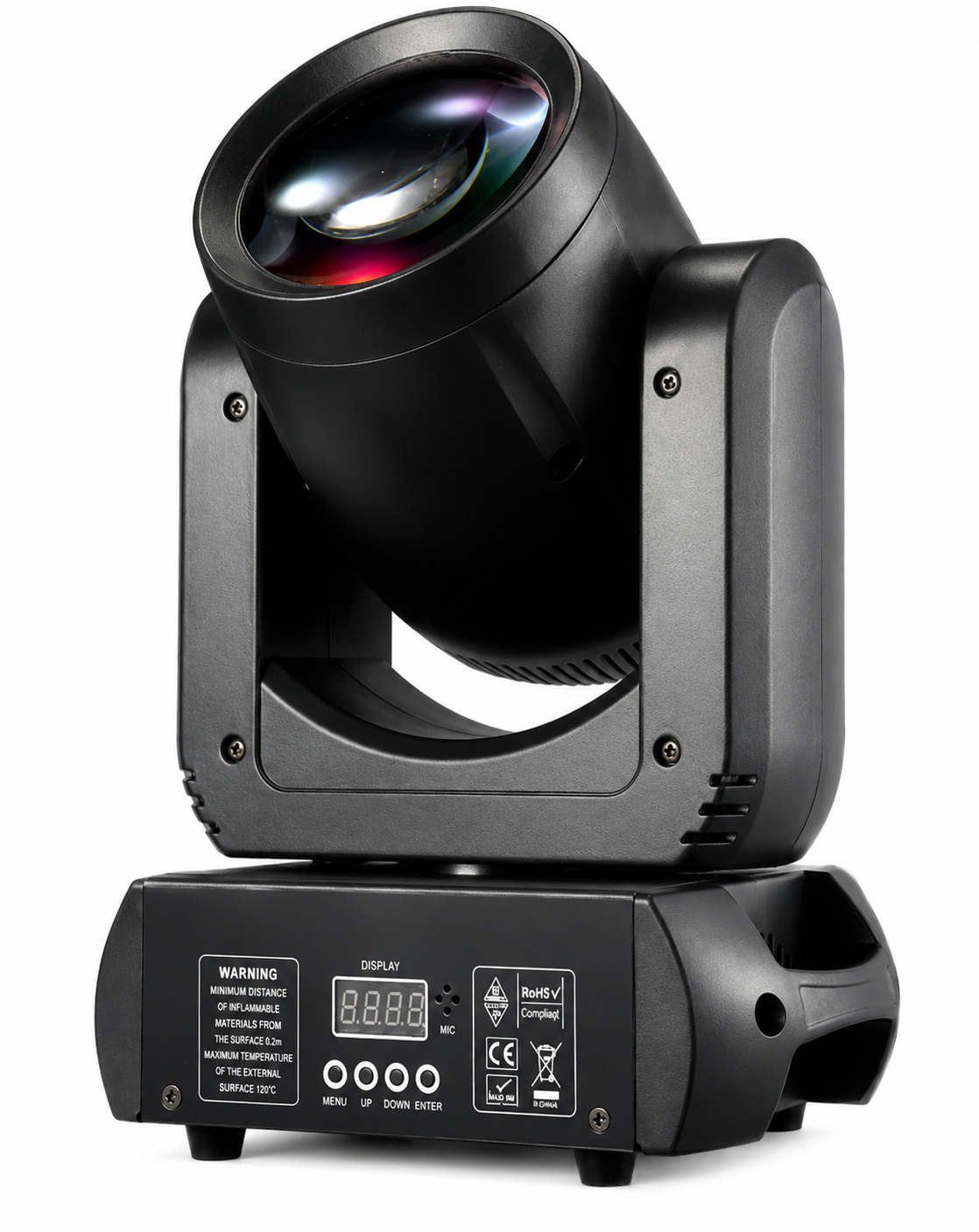

The Sawor CompactBeam punches well above its weight. At just 60W it delivers a peak intensity of 2,200,000 cd — comparable to industry-standard 180W beam fixtures, at a third of the power draw. Its small footprint and lightweight build make it easy to rig anywhere, from a packed touring case to a permanent truss installation. The 2° razor beam, 7+1 color and gobo wheels, and 18-facet rotating prism give you the full toolkit for aerial effects and dynamic stage looks. Smooth dimming, strobe, and precise pan/tilt keep you in full creative control via industry-standard DMX512. Supplied with power cable and mounting brackets.
Currently there are no reviews. Write to us so we can add one ;)
| Parameter | Specification |
|---|---|
| Fixture | |
| Housing Color | Black |
| Height | 340 mm |
| Width | 230 mm |
| Depth | 150 mm |
| Weight | 3 kg |
| Cooling | Active cooling |
| IP Rating | IP 33 (indoor use only) |
| Light Source | |
| Light Source | 60 W COB LED |
| Color Temperature | 8,500 K white |
| Optical System | |
| Beam Angle | 2° |
| Illuminance | 550,000 lux @ 2 m 22,000 lux @ 10 m |
| Peak Intensity | 2,200,000 cd |
| Gobo Wheel | 7 + open |
| Color Wheel | 7 + open |
| Prism | 18-facet rotating prism |
| Beam Angle (Prism) | 14° |
| Control & Operation | |
| Power Supply | 220 – 240 V AC, 50 Hz |
| DMX Channels | 12 |
| Power Consumption | 80 W max. |
| Apparent Power | 140 VA max. |
| Power Switch | Yes |
| Built-in Microphone | Yes |
| Grounding (PE) | Yes |
| Connections | |
| Power Input | Neutrik® PowerCON® compatible connector |
| DMX Input | 3-pin XLR |
| DMX Output | 3-pin XLR |
